Won Doors – FireGuard FG
The FireGuard FG is offered in both a straight and curved configuration.
All Won-Door Fireguard FG accordion fire doors are;
- Designed to meet all egress requirements for IBC Chapter 10 and NFPA Chapter 7
- U.L. listed for up to 3-hours (“A” label)
- Tested in accordance with U.L. 10B-10C
- Automatic closing system listed in accordance with U.L. 864

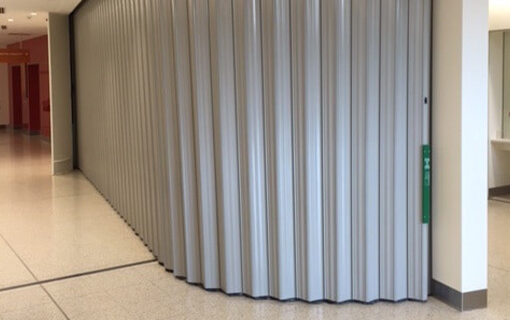

WON-DOOR FIREGUARD FG STRAIGHT
- U.L. LISTED FOR HEIGHTS UP TO 30′ AND UNLIMITED WIDTHS.
- CUSTOM HEIGHTS AVAILABLE
- POCKET COVER DOOR PROVIDED BY OTHERS
- SINGLE AND BI-PARTING CONFIGURATIONS AVAILABLE
- FOR OPENINGS > 700 SQ. FT. PLEASE CONTACT US
Unitized Track System
Unitized Track System (UTS) eliminates the layers of plywood and drywall found in conventional accordion fire door headers.
Motor Drive Systems
Automatic closing system listed in accordance with U.L. 864
Storage Pockets
Doors up to 15′-0″ tall only require 1′-6″ wide pockets. For pocket depth, use our stack calculator.
Alternative To Side Hinged Fire-Doors
Won-Door FireGuard doors are a single source assembly that eliminates the expense and associated maintenance costs of metal frames, astragals, etc.
Pocket Cover Doors & Bumper
Pocket cover door & bumper supplied by others.
Size Limitations
Won-Door FireGuard doors can accommodate almost any width opening, for heights greater than 19′-0″ and clear openings over 700 square feet please contact your local sales representative.
WON-DOOR FIREGUARD FG CURVED
- U.L. LISTED FOR HEIGHTS UP TO 30′ AND UNLIMITED WIDTHS.
- CUSTOM HEIGHTS AVAILABLE
- POCKET COVER DOOR PROVIDED BY OTHERS
- SINGLE AND BI-PARTING CONFIGURATIONS AVAILABLE
- FOR OPENINGS > 700 SQ. FT. PLEASE CONTACT US
Unitized Track System
Unitized Track System (UTS) eliminates the layers of plywood and drywall found in conventional accordion fire door headers.
Motor Drive Systems
Automatic closing system listed in accordance with U.L. 864
Storage Pockets
Doors up to 15′-0″ tall only require 1′-6″ wide pockets. For pocket depth, use our stack calculator.
Alternative To Side Hinged Fire-Doors
Won-Door FireGuard doors are a single source assembly that eliminates the expense and associated maintenance costs of metal frames, astragals, etc.
Pocket Cover Doors & Bumper
Pocket cover door & bumper supplied by others.
Size Limitations
Won-Door FireGuard doors can accommodate almost any width opening, for heights greater than 19′-0″ and clear openings over 700 square feet please contact your local sales representative.
